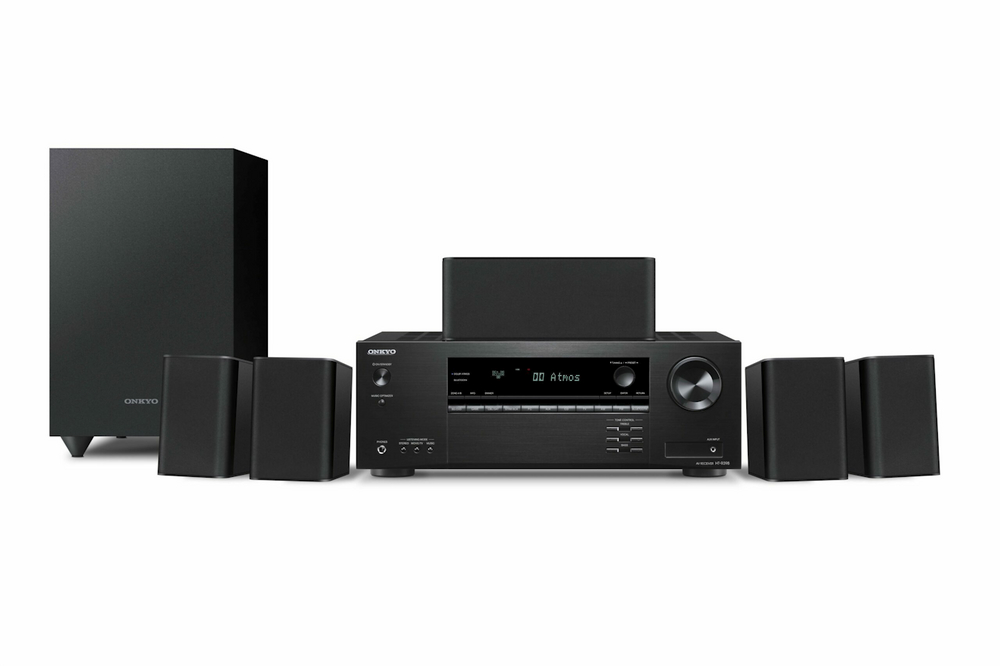

ONKYO HTS-3910 PACKAGE

Product Description

 SPECIFICATIONSA/V RECEIVERAmplifier SectionPower output (Front L/R / Center / Surround L/R / Subwoofer) 155 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven) x 5 ch, 125 W (6 ohms, 100 Hz, 10% THD) subwoofer (passive) 80 W/Ch (8 ohms, 20 Hz“20 kHz, 0.08% THD, 2 channels driven, FTC) x 5 ch, 80 W (8 ohms, 100 Hz, 0.08% THD, FTC) subwoofer (passive)THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz“20 kHz, Half Power)Input sensitivity and impedance 200 mV rms/47 k-ohms (Line)Tone control ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)Signal-to-noise ratio 109 dB (Line, IHF-A)Speaker impedance 4 ohms“16 ohmsTuner SectionTuning frequency rangeFM 87.5 MHz“107.9 MHzAM 530 kHz“1,710 kHzFM/AM preset memory 40 stationsGeneralPower supply AC 120 V, 60 HzPower consumption 445 WStandby power consumption0.1 WDimensions (W x H x D) 17 1/8 x 6 5/16 x 12 15/16 (435 x 160 x 328 mm)Weight 18.1 lbs. (8.2 kg)SPEAKER SYSTEMSpeaker TypeFront/center/surround Full-range acoustic-suspension with 3 (7.7 cm) coneSubwoofer Bass reflex, 6 7/16 (16 cm) coneFrequency ResponseFront/surround 80 Hz“20 kHzCenter 70 Hz“20 kHzSubwoofer 28 Hz“5 kHzOutput Sound Pressure LevelFront/center/surround 80 dB/W/mSubwoofer 78 dB/W/mMax. Input PowerFront/center/surround 150 WSubwoofer 120 WNominal Impedance Front/center/surround/subwoofer 6 ohmsGeneralDimensions (W x H x D)Front/surround 3 7/8 x 5 1/2 x 4 3/16 (98.5 x 140.5 x 106 mm)Center 9 5/8 x 3 13/16 x 4 (244 x 96 x 102 mm)Subwoofer 9 1/16 x 15 5/16 x 13 1/16 (230 x 389 x 331 mm)WeightFront/surround 1.1 lbs. (0.5 kg)Center 1.3 lbs. (0.6 kg)Subwoofer 10.1 lbs. (4.6 kg)CARTONDimensions (W x H x D) 21 1/16 x 26 9/16 x 17 1/8 (535 x 675 x 435 mm)Weight 41.9 lbs. (19.0 kg)UPC CODE(B) 889951001829Supplied Accessories Indoor FM antenna AM loop antenna Non-skid pads Speaker cables Quick Start Guide Remote controller AAA (R03) batteries x 2
